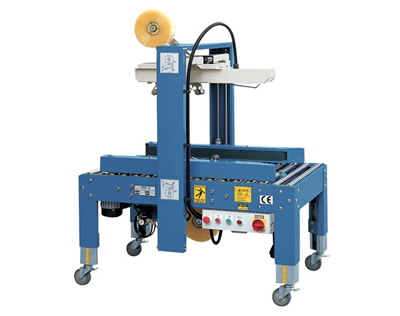

Model : CHS-6601A
| Function | Side drive |
| Power supply | 110v/220v, 50/60hz |
| Tape width | 2″ or 3″ |
| 2″ standard carton dimension | L =150mm, w =110~600mm, h =110~250mm |
| 3″ standard carton dimension: | L =150mm, w =250~600mm, h =135~250mm |
| Working table height | 570~770mm |
| Convey speed | 20m / min |
| Machine size: | 1250(l) x 910(w) x 1315(h) mm |
| Air compressor | 6 kg/cm |

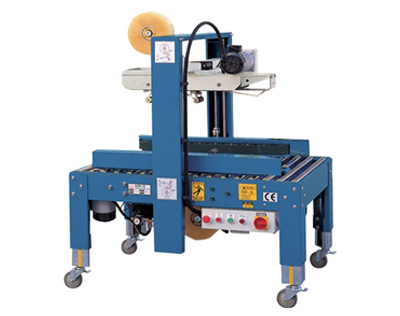

Model :CHS-6603A
| Function | Top & side drive |
| Power supply | 1φ / 3φ, 110v/220v, 50/60hz |
| Tape width | 2″ or 3″ |
| 2″ standard carton dimension | L =150mm, w =110~600mm, h=110~250mm |
| 3″ standard carton dimension: | L =150mm, w =250~600mm, h=135~250mm |
| Working table height | 570~770mm |
| Convey speed | 20m / min |
| Machine size: | 1250(l) x 910(w) x 1315(h) mm |
| Air compressor | 6 kg/cm |
