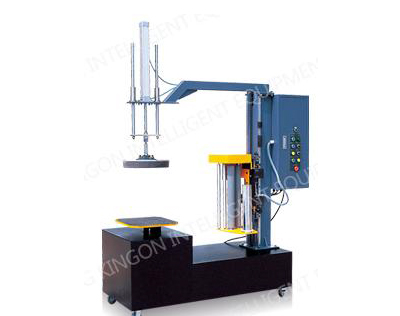

BOX WRAPPING MACHINE
| Model | DNT600F |
| Wrap size | 600mm X 600mm X (350-600)mm |
| Machine Size | 600mm X 1740mm X1800mm |
| Power / Volatge | 1.2kw AC220V/50HZ |
| Turntable weight capacity (max) | 150kg |
| Total Weight | 180kg |
| Wrap Efficiency | 20-40 Pallets/Hour |
| Film Carriage | Pre-Stretch 350% |
| Control Sytems | PLC Control |
| Top Plate System | Pneumatic |

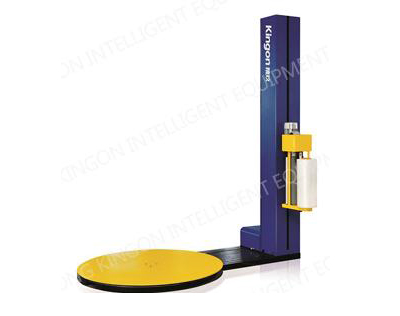

PALLET WRAPPING MACHINE
| Model | K1100 |
| Wrap size (L X W) | (500-1200)mm X (5001100)mm |
| Wrap height (max) | 2400mm or customized |
| Turntable diameter | 1650mm |
| Turntable rotary speed | 0-12rpm adjustable by inverter |
| Turntable weight capacity (max) | 2000Kg |
| Film carriag | 350% |
| Wrap efficiency | 20-40 Pallets/Hour |
| Control system | PLC control |
| Total weight(max) | 450kg |
| Machine size | 2460mm X 1650mm X 2700mm |

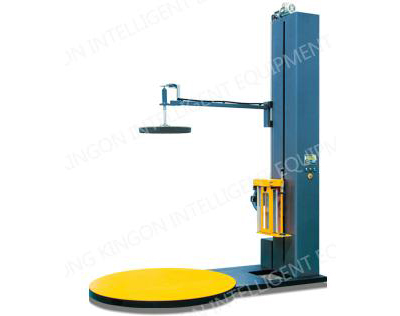

PALLET WRAPPING MACHINE (With Top Plate)
| Model | K1100 |
| Wrap size (L X W) | (500-1200)mm X (500-1200)mm |
| Wrap height (max) | L type:1800mm H type:2400mm Y type:2800mm |
| Wrap efficiency | 20-40 Pallets/Hour |
| Turntable speed | 0-12rpm Adjustable turntable speed |
| Turntable diameter | 1650mm |
| Turntable height | 78mm |
| Turntable weight | 2000kg |
| capacity (max) Film carriage | 350% |
| Control system | PLC control |
| Total weight | 500kg |
| Machine size | 2745mmX1650mmX(2270-2870)mm |
PALLET WRAPPING MACHINE (Fully Automatic)
| Model | DT1650FZ |
| Wrap size (L X W) | (800-1200) X (800-1200)mm |
| Wrap Efficiency | 40-50 Pallets/Hour |
| Turntable Speed | 0-12 rpm |
| Turntable diameter | 1650 mm |
| Turntable weight capacity (max) | 2000kg |
| Film carriage | 350% |
| Cut & Clamp Unit | Pneumatic Control |
| Pneumatic System | 0.6-1.0Mpa 200NL/min |
| Total weight | 800Kg |
| Machine Dimension | 2745mm X 1650mm X (2270-2870)mm |
| Power / Voltage | 0.37kw /AC220V 50HZ |

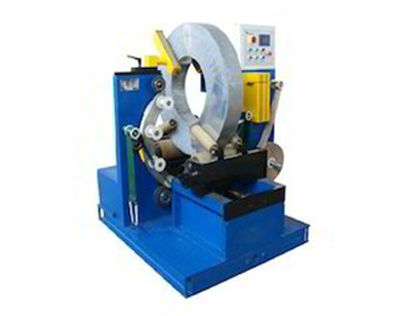

Coil / tyre wrapping machine
| Type | Circular Winding Machine |
| Machine Weight | 600 kg |
| Driven Type | Electric |
| Application | Coil, Tire |
| Automatic Grade | Automatic |
| Wrapping diameter | Depend on customer requirement |
